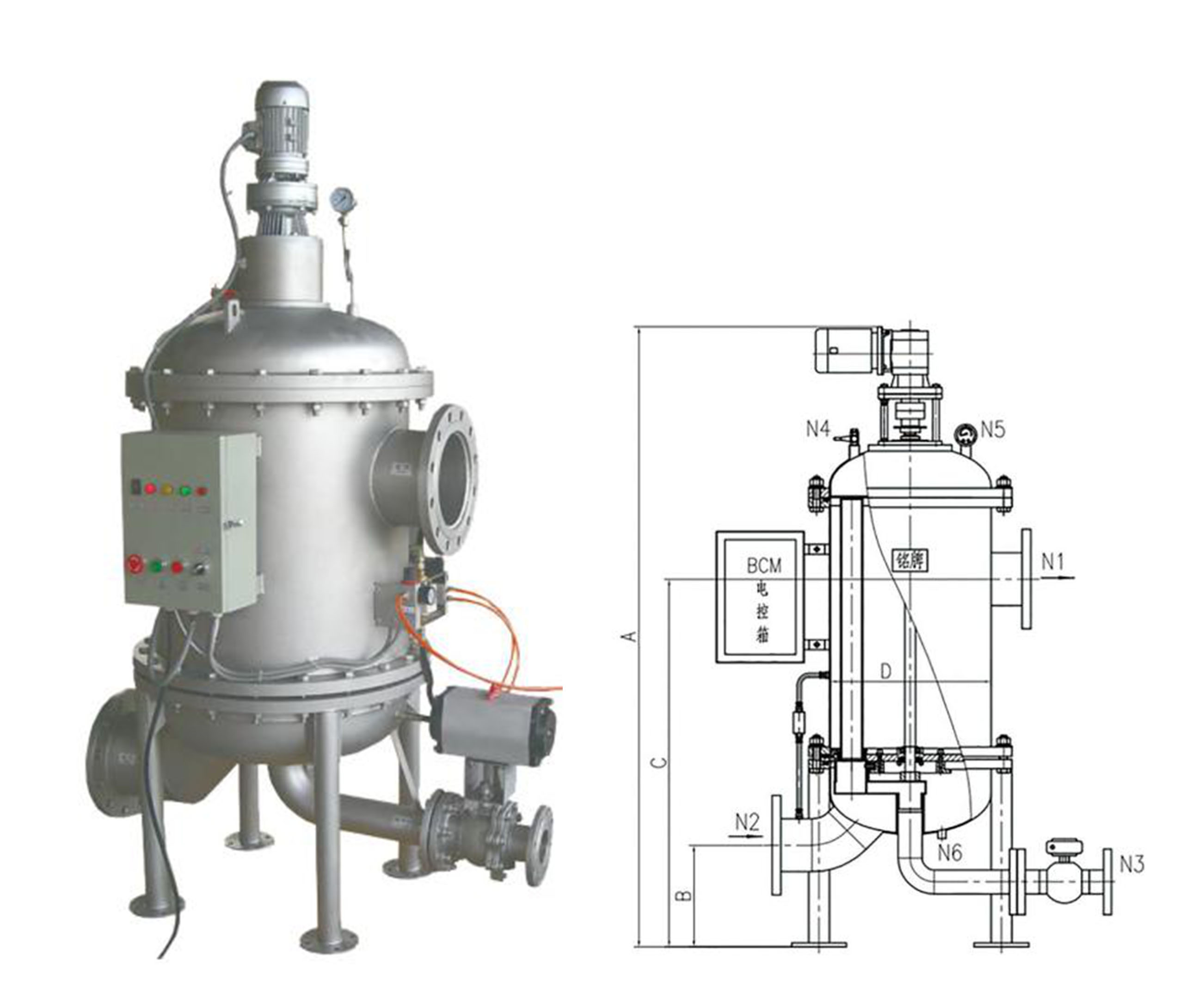

BCM全自动反冲洗过滤器适用于过滤高流量、高速度、低粘度流体的颗粒杂质。

BCM Full Automatic Reverse-washing Filter adapt to filter particle and impurity with high quality、high speed、low viscosity.

BCM全自动反冲洗过滤器适用于过滤高流量、高速度、低粘度流体的颗粒杂志。BCM全自动过滤器为机电一体化产品，具有设计合理、过滤效率高、运行成本低、反冲洗过程中仍能连续过滤等优点，广泛应用于冶金、化工、电力、油田回注水、环保水等领域。

BCM full Automatic reverse-washing filter is mechatronics products ，it have reasonable design、high efficient、low cost and continuous filter during the operation of reverse washing and other advantages.It have been widely used metallurgy、chemical industry、electric power 、oilfield reinjection water、environmental water treatment and other fields.

工作原理：

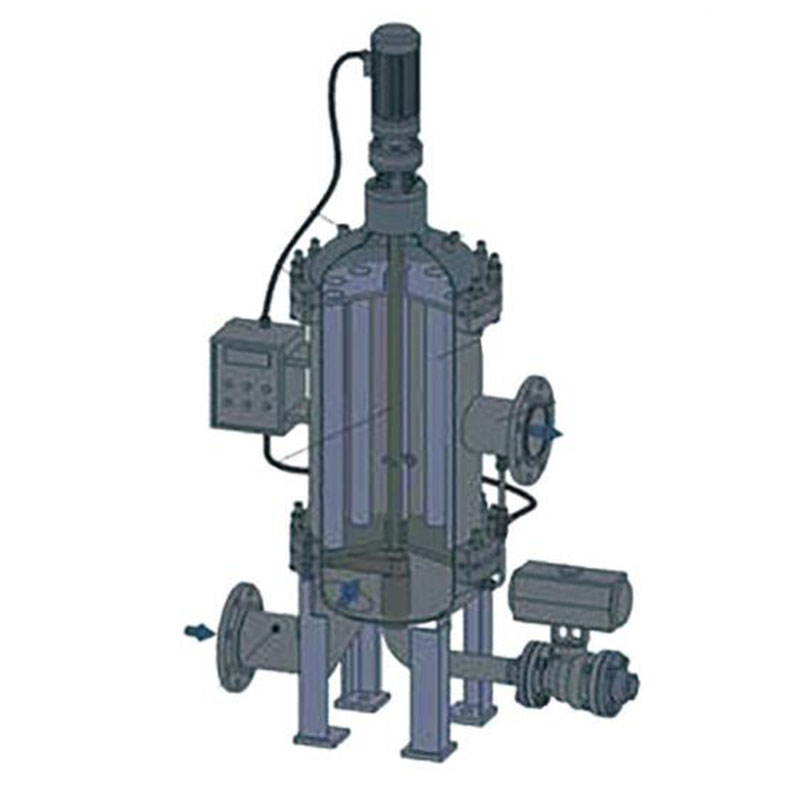

被过滤的液体从进口进入过滤器，经过下固定板进入滤网，液体从滤网内侧流向外侧，并从滤筒出口流出过滤器；反冲洗排出的杂质从排污口排出。

Working principle:

The liquid filtered enter the filter from the entrance and flow into the filter screen through bottom fixed plate ，the liquid will flow from inside to outside in the filter screen and flow out of the filter entrance of the filter drum then；the impurity that have been discharged by reverse-washing will flow out of the drain outlet finally.

过程描述：

◆液体从滤网内侧流向外侧过程中，固体颗粒被截留在滤网内侧。随着污染物的增多，过滤器污染侧和清洁侧之间的压差也逐渐增大。当压差达到设定值时，压差表发讯，过滤器开始自动反冲洗工作过程。

Process Description:

As the liquid flow from the inside of the filter screen to the outside of the outside of the filter screen ，the solid impurities will be interception  in the inside of the filter screen.With the increasing of pollutant ，the more higher for the differential pressure between the pollution side and the clean side.When the differential pressure reach set point，the differential pressure gauge will tell then ，and the filter start to work for reverse-washing procedure.

反冲洗过程：

◆减速电机通过中间轴驱动冲洗臂转动，由光电定位开关控制冲洗臂的转动角度，使之与被清洗滤网对正；

REVERSE-WASHING PROCEDURE：

Gear motor through the central shaft driven washing rotating arm ，rotating angle of the washing arm is controlled by a photoelectric positioning switch to and clean the filter on the positive.

反冲洗过程设定：

◆压差设定：过滤器设有压差调节表，用于过滤器压差值的设定；

时间设定：控制箱设有时间设定装置，可根据用户要求设定过滤器反冲洗过程的时间周期；压差设定和时间设定为反冲洗设定过程，两种设定同时存在，且压差设定优先。

◆手动启动：除压差设定和时间设定自动反冲洗过程外。还有按TEST键手动启动反冲洗过程，供调试检修时用。

SET FOR REVERSE-WASHING PROCEDURE：

◆Set for the differential pressure：The filter have differential pressure regulating table for setting of differential pressure about the filter .

◆Set for time ：There have equipment for the time setting in the control cabinet ，it can be set as the time cycle for filter’s reverse-washing procedure ，sets of both kinds are concurrence ，and give priority to the differential pressure.

◆Start manually ：Besides set for the differential pressure and time to take automatic reverse-washing procedure then ，Start manually as press TEST can be used to start the reverse-washing procedure when commissioning and repairing.

应用领域：

生活用水、生产工艺给水、过滤超滤、反渗透、软化、离子交换等预处理、油田回注水、循环冷却水、中水回用、地下水、地表水除浊净化、锅炉回水、景观水、市政、绿地喷洒、农业喷灌、高尔夫球场用水过滤。

Household water supply;Product process feed water;Blocking ultrafiltration;RO;IX(Ion Exchange);Pretreatment;Oil field reinjection water;Circulating cooling water;Reuse or recycled water;Ground water;Surface water turbidity purification;central-air-conditioning、Boiler water;Landscape water ;city;Green space spraying;Agricultural irrigation;Golf course water filter.

技术参数：TECHNICAL DATA：
