产品概述：
HBF系列水平叶片过滤机是一种高效、节能、自动密闭过滤的精密澄清设备。

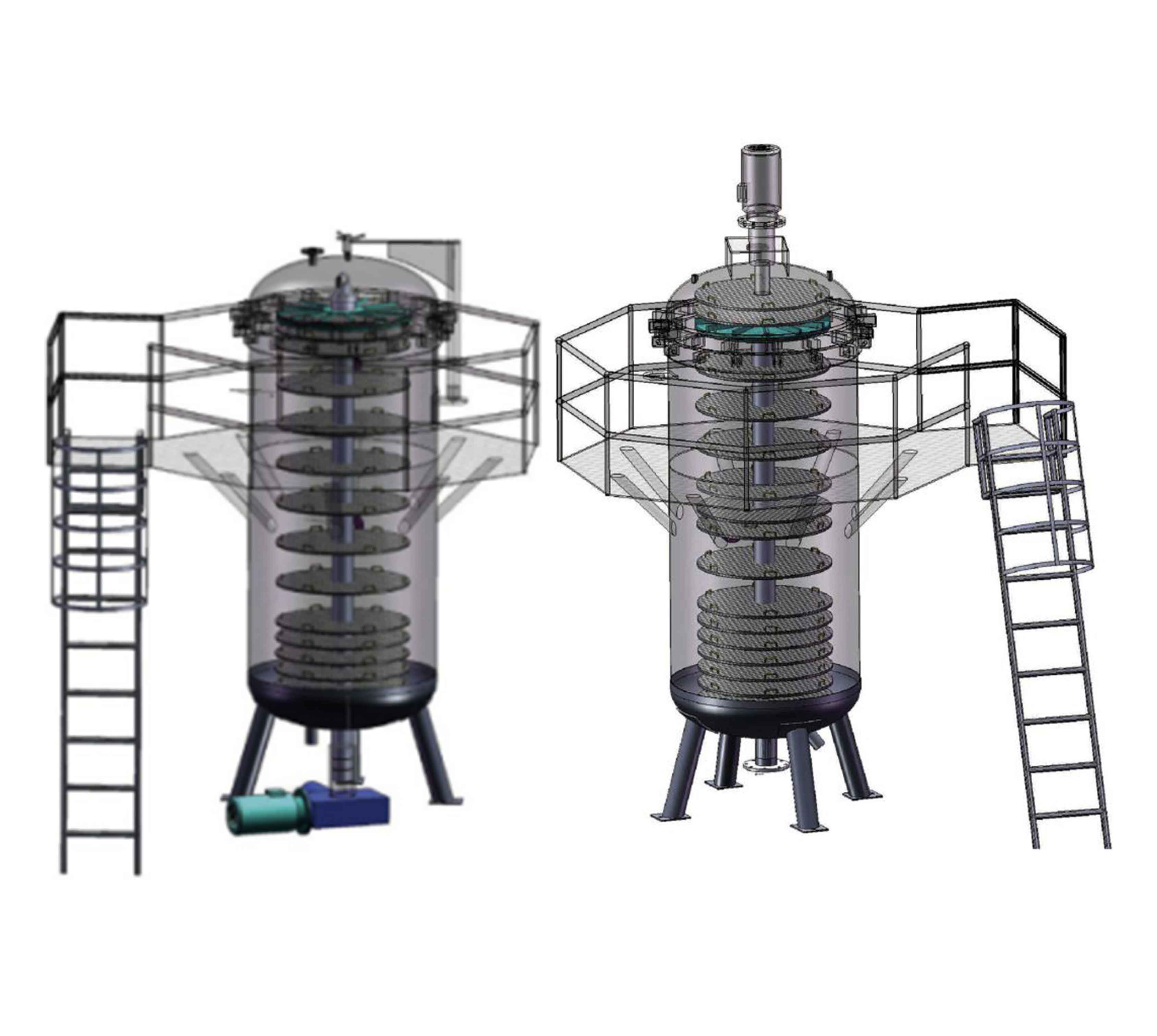

按其传动形式可分为ZBF（上传动）水平叶片过滤机和ZBF-H（下传动）水平叶片过滤机两种，同时具有以下特点：
完全密闭过滤，无泄漏，无任何环境污染。
2.滤盘水平设计滤，饼形成稳定，过滤效果好。
3.离心排渣，卸渣干净迅速，适应多种粘稠物料的过滤和卸渣。
4.滤网清洗容易，不用拆卸，可在机体内进行。
5.占地面积小，操作方便简单。
6.整个过滤过程可实现全自动化。
PRODUCT OVERVIEW:
HBF series vertical leaf filter is a fine clarifying filtrate equipment
with high-efficiency and energy-saving and auto hermetic.
According to its transmission type, it has ZBF vertical leaf filter and ZBF-H vertical leaf filter. It has the following advantages：
1.Fully hermetic filter, no leakage , no pollution.
2.As the leaves are designed in a horizontal disc form, cake can form stability which achieves good results.
3.The cake is spun out by centrifugal. It’s very clean and quick. That’s suitable to kinds of substance with different viscosity.
4.Filter gauze are easy to wash, and need not disassembly.
5.Small occupancy of the area , easy to operate.
6.The whole process can be achieved automatically.
ZBF型主要规格技术参数：ZBF Main Technological Parameters:
HBF-S系列水平叶片过滤设备: HBF-S series horizontal blade filtering equipment:
|
型号 Model |
过滤面积 Filter area (m2) |
叶片直径 Blade Diameter (mm) |
工作温度working temperature (℃) |
工作压力 working pressure (Mpa) |
外形尺寸 Outline dimensions φ*H (mm) |
|
HBF-S-2 |
2 |
400 |
≤150 |
0.4 |
600*2000 |
|
HBF-S-5 |
5 |
600 |
800*2600 |
||
|
HBF-S-7 |
7 |
600 |
800*2900 |
||
|
HBF-S-10 |
10 |
850 |
1000*3800 |
||
|
HBF-S-12 |
12 |
850 |
1000*4000 |
||
|
HBF-S-15 |
15 |
850 |
1000*4500 |
||
|
HBF-S-20 |
20 |
1000 |
1200*5500 |
||
|
HBF-S-25 |
25 |
1000 |
1200*5800 |
||
|
HBF-S-30 |
30 |
1000 |
1200*6500 |
||
|
HBF-S-35 |
35 |
1200 |
1400*6800 |
||
|
HBF-S-40 |
40 |
1200 |
1400*7500 |
||
|
HBF-S-45 |
45 |
1200 |
1400*8200 |
||
|
HBF-S-50 |
50 |
1220 |
1400*8900 |
||
|
HBF-S-60 |
60 |
1200 |
1400*10000 |
HBF-B系列水平叶片过滤设备 HBF-B series horizontal blade filtering equipment
|
型号 Model |
过滤面积 Filter area (m2) |
叶片直径 Blade Diameter (mm) |
工作温度working temperature (℃) |
工作压力 working pressure (Mpa) |
外形尺寸 Outline dimensions φ*H (mm) |
|
HBF-B-2 |
2 |
400 |
≤150 |
0.4 |
900*1480 |
|
HBF-B-5 |
5 |
600 |
1200*2050 |
||
|
HBF-B-7 |
7 |
600 |
1200*2500 |
||
|
HBF-B-10 |
10 |
850 |
1600*2900 |
||
|
HBF-B-15 |
15 |
850 |
1600*3100 |
||
|
HBF-B-20 |
20 |
850 |
1900*2950 |
||
|
HBF-B-25 |
25 |
1000 |
1900*3480 |
||
|
HBF-B-30 |
30 |
1000 |
2300*3400 |
||
|
HBF-B-35 |
35 |
1000 |
2300*3800 |
||
|
HBF-B-40 |
40 |
1200 |
2300*4100 |
||
|
HBF-B-45 |
45 |
1200 |
2300*4500 |
||
|
HBF-B-55 |
55 |
1200 |
2300*4800 |
||
|
HBF-B-65 |
65 |
1220 |
2300*5100 |
