产品概述：

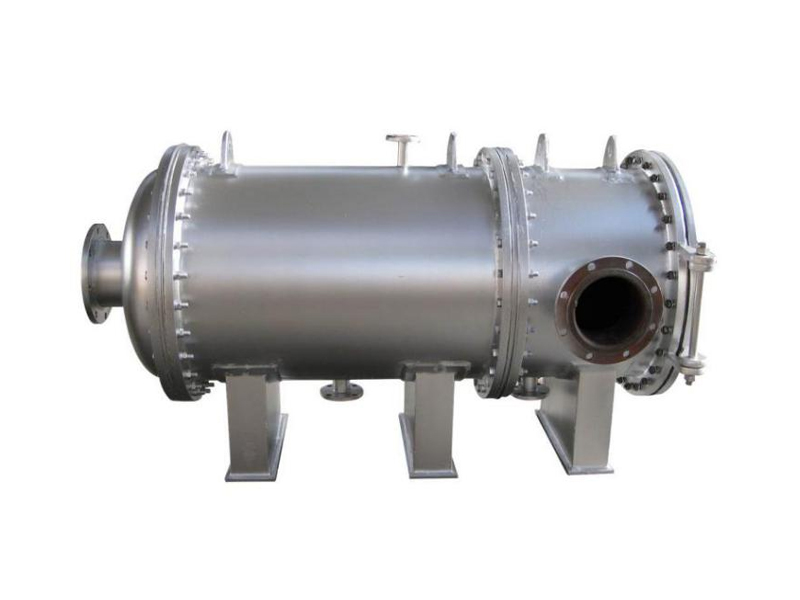

大流量过滤器针对于大口径和高流速的管道而开发，其芯件采用折叠式滤芯，相对于竞争对手普通冲孔篮式滤芯和棒式折叠式滤芯多倍面积。其大于50%的开孔率与直通式结构，组合出最大的流量和最小压差，大大降低了总体的尺寸和重量，当过滤器停止使用时，只需一人清理维护即可。我司开发的大流量过滤器按照安装形式分立式和卧式两种结构可供选择。
◆材质：SUS304、SUS306L
◆接口形式：螺纹或法兰
◆密封材料：丁晴密封圈、硅胶密封圈、氟胶密封圈
◆密封形式：O型密封圈
◆适用滤芯：20＂、40＂、60＂
◆设计压力：1.0Mpa
◆设计流量：20-420m3/H
◆表面处理：抛光或喷砂
◆安装形式：立式,卧式
PRODUCT OVERVIEW:
Large-flow filter developed for large diameter pipe and high flow rate, core pieces of stainless steel folded filter relative to competitors ordinary punching basket filter rod folded filter times area. Its opening rate of greater than 50% with a straight-through structure, the combination of maximum flow and minimum pressure differential, greatly reducing the the overall size and weight of the filter to stop using, cleaning and maintenance can be only one person. Our development of the large flow filter in accordance with the installation form discrete and horizontal two structures to choose from.
◆ Material：SUS304、SUS306L
◆ Connection type: screw thread or flange
◆ Seal material：BUNA、Silicone、VITON
◆ Seal type： O-type steal packing ring
◆ Apply to a strainer：20＂、40＂、60＂
◆ Design pressure：1.0Mpa
◆ Design flow：20-420m3/H
◆ Surface disposal：polishing or sandblast
◆ installation forms：vertical, horizontal
技术参数：TECHNICAL DATA：
|
Model style 型号样式 Outline dimension 外形尺寸 |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
N1 |
N2 |
N3 |
N4 |
流量 Flow (m3/h) |
容积 Volume (L) |
||
|
RH-1S4-L |
Φ190 |
1320 |
200 |
1690 |
380 |
100 |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
40 |
30 |
||
|
RH-2S2-L |
Φ400 |
1690 |
450 |
1970 |
560 |
100 |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
80 |
150 |
||
|
RH-2S3-L |
Φ450 |
1690 |
450 |
1985 |
610 |
100 |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
120 |
200 |
||
|
RH-2S4-L |
Φ500 |
1690 |
450 |
2000 |
700 |
100 |
DN100法兰 |
DN100法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
160 |
250 |
||
|
RH-2S5-L |
Φ550 |
1740 |
500 |
2015 |
750 |
100 |
DN100法兰 |
DN100法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
200 |
300 |
||
|
RH-2S7-L |
Φ650 |
1740 |
500 |
2040 |
890 |
100 |
DN125法兰 |
DN125法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
280 |
440 |
||
|
以下尺寸为过滤器为卧式安装时尺寸 |
||||||||||||||
|
RH-1S4-W |
Φ190 |
200 |
1500 |
/ |
/ |
/ |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
40 |
30 |
||
|
RH-2S2-W |
Φ400 |
800 |
1780 |
/ |
/ |
/ |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
80 |
150 |
||
|
RH-2S3-W |
Φ450 |
800 |
1790 |
/ |
/ |
/ |
DN80法兰 |
DN80法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
120 |
200 |
||
|
RH-2S4-W |
Φ500 |
800 |
1800 |
/ |
/ |
/ |
DN100法兰 |
DN100法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
160 |
250 |
||
|
RH-2S5-W |
Φ550 |
800 |
1820 |
/ |
/ |
/ |
DN100法兰 |
DN100法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
200 |
300 |
||
|
RH-2S7-W |
Φ650 |
800 |
1850 |
/ |
/ |
/ |
DN125法兰 |
DN125法兰 |
Rc1/4"内丝 |
Rc1"外丝 |
280 |
440 |
||
