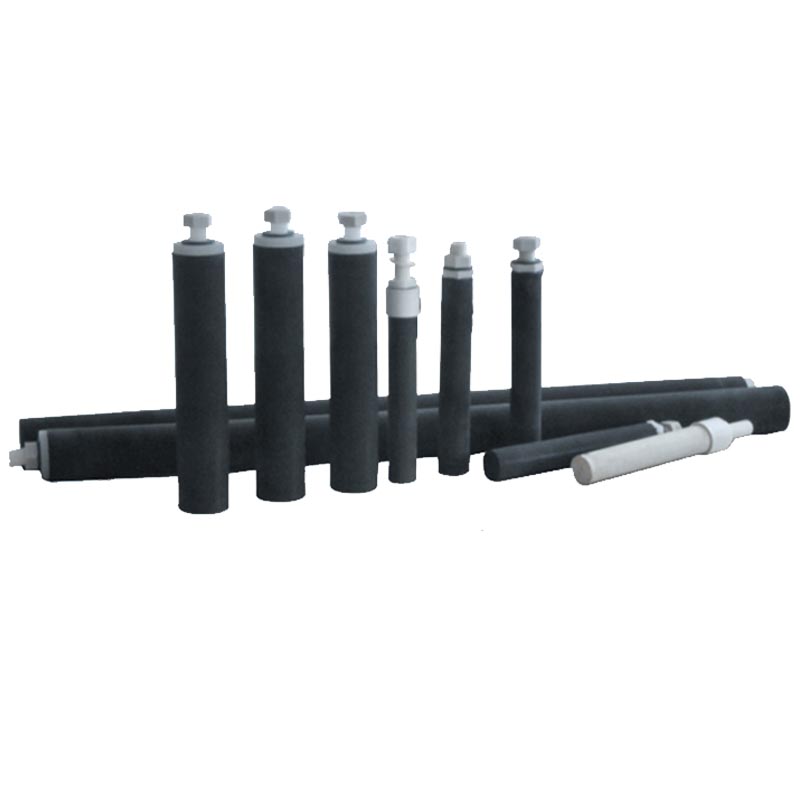

PA/PE管滤芯

产品简介:

PA/PE烧结滤芯(即PA滤芯,PAC滤芯,PA脱碳滤芯)采用超高子聚乙烯和炭纤维为主要原料,材质符合GMP,FDA要求。每根滤芯出厂前都接受气泡均匀度测试,确保微孔分布均匀。

产品特点:

1、在生产过程中不使用粘合剂,具有广泛的化学兼容。PA烧结滤芯经科学配方高温烧结而成, 具有良好的机械性能。

2、滤芯孔径内外相同,过滤层厚,工作压力高时,也能保证过滤效果。产品微粒粘结牢固,不易脱落。

3、生产大型水处理设备,可采用自动或手动反冲脱渣法,固体微粒回收可采用干出渣,不需经常更换滤芯,可自动化操作, 过滤成本低等优点。


Product introduction:
PA / PE sintered filter core (i. E. PA filter core, PAC filter core, PA decarbonization filter core) uses ultra-high molecular polyethylene and carbon fiber as the main raw materials, the material conforms to GMP, FDA requirements. Each filter element is subjected to bubble uniformity test before leaving factory to ensure uniform distribution of micropores.
Product features:
1, in the production process does not use adhesives, has a wide range of chemical compatibility. PA sintered filter core is made by scientific formula and sintered at high temperature and has good mechanical properties.
2, the filter core inside and outside is the same, the filter layer is thick, the working pressure is high, also can guarantee the filtering effect. The product particles are firmly bonded and are not easy to fall off.
3, the production of large water treatment equipment, automatic or manual recoil slag removal method, solid particle recovery can be used dry slag, without regular replacement of filter core, automatic operation, low filtration cost and so on.


技术参数:TECHNNICAL DATA

RH-PA/PE-OD*ID*L-P-I

直径(OD

mm

内径(ID

MM

长度(L

mm

精度(P

um

接口

I

Φ31

Φ20

20050010002000

2米内任意长度)

0.22um0.51um5um10um20um50um100um

M20M22

Φ38

Φ20

20050010002000

2米内任意长度)

0.22um0.51um5um10um20um50um100um

M20M22

Φ50

Φ20Φ30Φ37

2005001000

1米内任意长度)

0.22um0.51um5um10um20um50um100um

M20M22M25G3/4

Φ62

Φ30Φ40Φ44

2005001000

1米内任意长度)

0.22um0.51um5um10um20um50um100um

M30M36222226

Φ68

Φ30Φ40Φ44

2005001000

1米内任意长度)

0.22um0.51um5um10um20um50um100um

M30M36222226

Φ100

Φ85

5001000

1米内任意长度)

0.22um0.51um5um10um20um50um100um

两头通DO

Φ150

Φ125

5001000

1米内任意长度)

0.22um0.51um5um10um20um50um100um

两头通DO
