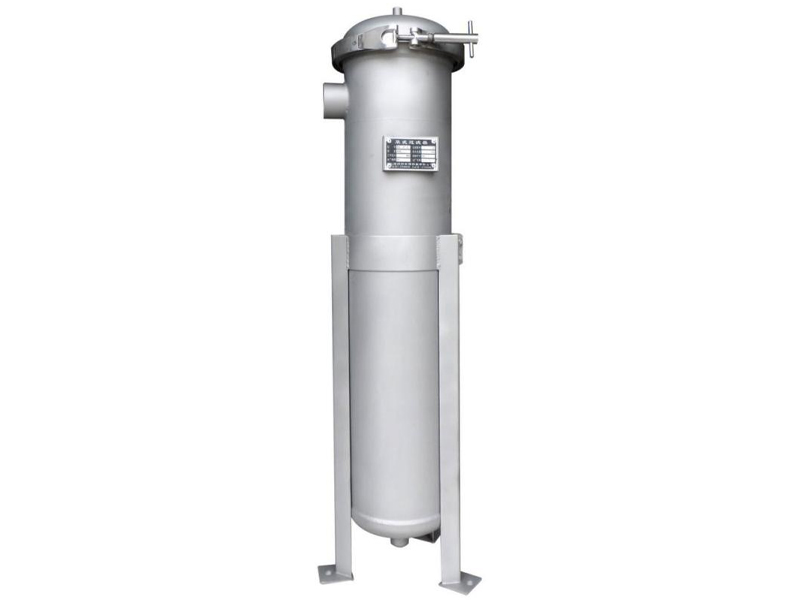

产品概述:
◆材质:SUS304、SUS316L
◆接口形式:内丝或法兰
◆密封材料:丁晴密封圈、硅胶密封圈、氟胶密封圈
◆密封形式:O型密封圈
◆适用滤袋:1号滤袋、2号滤袋、3号滤袋、4号滤袋
◆设计压力:0.6Mpa
◆设计流量:6-40m3/H
◆表面处理:喷砂或抛光
◆侧进式设计
◆安装脚高度可调整
PRODUCT OVERVIEW:
◆Material:SUS304、SUS316L
◆Connection:type:screw thread or flange
◆Seal material:BUNA、silicone、VITON
◆Seal type:O-type seal ring
◆Apply to a strainer:1#、2#、3#、4# filter bags
◆Design pressure:0.6Mpa
◆Design flow:6-40m3/H
◆Surface disposal:sandblast or electrolytic polishing
◆Side entrance design
◆Mounting legs with adjustable height
技术参数:TECHNICAL DATA:
Model Style 型号样式 Outline Dimensio 外形尺寸 |
A (mm) |
B (mm) |
C(Max) (mm) |
D(Max) (mm) |
N1 |
N2 |
N3 |
流量 Flow (m3/h) |
容积 Volume (L) |
RHDL-1P1S |
Ø200 |
600 |
250 |
760 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
20 |
18 |
RHDL-1P2S |
Ø200 |
1065 |
350 |
1225 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
40 |
30 |
RHDL-1P3S |
Ø130 |
250 |
390 |
610 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
8 |
6 |
RHDL-1P4S |
Ø130 |
250 |
550 |
770 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
12 |
10 |
